3UF7113-1AA01-0 /20...200A - 690V'a kadar

Stok Kodu
3UF7113-1AA01-0
Product
Article Number (Market Facing Number) 3UF7113-1AA01-0

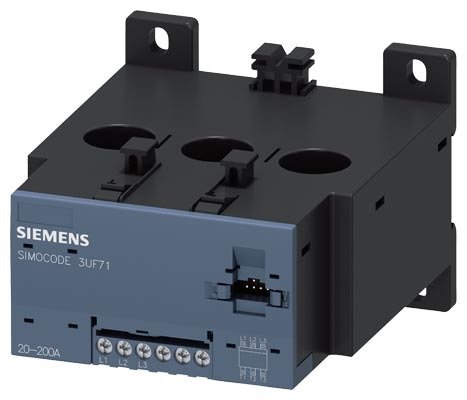

Product Description Current/voltage measuring module V2; Set current 20...200 A, Voltage measurement up to 690 V, Overall width 120 mm, Straight-through transformer, basic unit required pro V PB, pro V MR, pro V PN or pro V EIP
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product
Notes
This product cannot be ordered currently. If you need support please contact your Siemens partner
Price data
Headquarter Price Group 42J
List Price Price On Request
Unit Customer Price Show prices
Metal Factor L-O-----
Delivery information
Export Control Regulations AL : N / ECCN : EAR99
Standard lead time ex-works 1 Day/Days
Net Weight (kg) 0,695 Kg
Product Dimensions (W x L x H) Not available
Packaging Dimension 172,00 x 145,00 x 137,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN 4047621025742
UPC 804766420726
Commodity Code 85364900
LKZ_FDB/ CatalogID CC-IC10
Product Group 5836
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 28.05.2009
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation -
REACH Art. 33 Duty to inform according to the current list of candidates
Classifications

Version Classification
eClass 5.1 27-37-08-01
eClass 6 27-37-08-04
eClass 7.1 27-37-08-04
eClass 8 27-37-08-04
eClass 9 27-37-08-04
eClass 9.1 27-37-08-04
ETIM 5 EC002572
ETIM 6 EC002572
ETIM 7 EC002572
IDEA 4 4776
UNSPSC 15 39-12-15-52
