7ML5440-0GB00-0AC2 /SITRANS LR560

Stok Kodu
7ML5440-0GB00-0AC2
Product
Article Number (Market Facing Number) 7ML5440-0GB00-0AC2

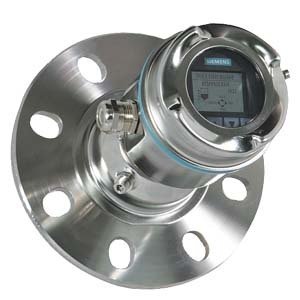

Product Description SITRANS LR560: A 2-wire, 78 GHz FMCW radar level transmitter for continuous monitoring of solids and liquids to a range of 100 m (329ft) Order hand programmer separately! Measurement and process temperature range: 40m (131 ft) max range, -40 C degrees to +100 C degrees Process connection: Universal flat-faced flange fits ANSI/DIN/JIS flanges: 3" / 80 mm, painted aluminum, with integral aimer Enclosure (with cable inlet): Stainless Steel, 1 X M20 x 1.5 (plastic gland included) . Label: Sitrans LR560 Pressure Rating: 0.5 bar g (7.5 psi g) maximum Output/communication: 4 to 20 mA, HART Approvals: ATEX II 1D, 1/2D, 2D, IECEx, 3G Ex nA/nL, CE, RED, RCM Local display interface: With LDI (local display interface)
Product family Not available
Product Lifecycle (PLM) PM300:Active Product
Price data
Price Group 8L2
List Price Show prices
Customer Price Show prices
Surcharge for Raw Materials None
Metal Factor None
Delivery information
Export Control Regulations ECCN : 3A991X / AL : N
Standard lead time ex-works 1 Day/Days
Net Weight (kg) 6 Kg
Product Dimensions (W x L x H) Not available
Packaging Dimension Not available
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN Not available
UPC Not available
Commodity Code 90261029
LKZ_FDB/ CatalogID FI01-4
Product Group 4716
Country of origin Canada
Compliance with the substance restrictions according to RoHS directive Since: 10.01.2003
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
Classifications
  Not available
