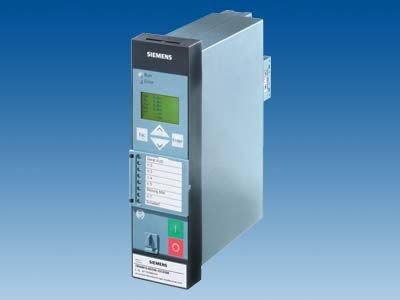

7SK8012-1EB90-1HD0 L0R /Motor protection relay 7SK80

Kategori
Stok Kodu
7SK8012-1EB90-1HD0 L0R
Product
Article Number (Market Facing Number) 7SK8012-1EB90-1HD0 L0R
Product Description Motor protection Enclosure 1/6 19", 4 x I, 3 BI, 5 BO (2 changeover contacts) 1 live contact measuring inputs: Iph = 1 A / 5 A, Iee (sensitive) = 0.001 to 1.6 A/0.005 to 8 A rated auxiliary power: DC 24, 48 V installation enclosure, screw terminals region world, IEC/ANSI language English (language can be changed) front membrane standard system interface port B (device bottom side, rear) IEC 61850, 100 Mbit Ethernet, electr., double, RJ45 plug without system interf., port A measurement: fault recording functionality: overcurrent protection+ overcurrent protection PH(50/51) I>,I>>,I>>>,Ip ground-fault protection overcurrent protection ground (50N/51N: Ie>, Ie>>,Ie>>>, Iep ground fault/ground fault prot. Iee>.Iee>>,Ieep overload protection (49) trip-circuit supervision (74TC) circuit-breaker failure protection (50BF), unbalanced-load protection (46) lock out (86) start-up time monitoring (48) undercurrent monitoring (37) restart inhibit (66/86) rotor blocking protection (14) load-jam protection (51M) motor(*)
Product family Ordering Data Overview
Product Lifecycle (PLM) PM300:Active Product
Notes
This product cannot be ordered currently. If you need support please contact your Siemens partner
Price data
Price Group / Headquarter Price Group B18
List Price Show prices
Unit Customer Price Show prices
Metal Factor None
Delivery information
Export Control Regulations ECCN : N / AL : N
Standard lead time ex-works 20 Day/Days
Net Weight (kg) 4,000 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN Not available
UPC Not available
Commodity Code 85363010
LKZ_FDB/ CatalogID SIP6.4
Product Group 1318
Group Code U321
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 29.09.2008
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates
Classifications

Version Classification
UNSPSC 15 32-15-17-05
