| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3AH3305-2ME40-0ED2 | |||||||||||||||||||||||||||||||||

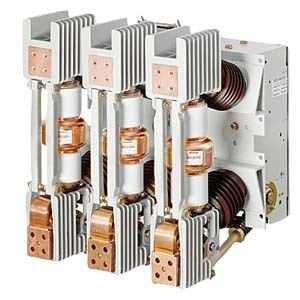

| Product Description | Vacuum Circuit-Breaker 36kV pole-centre distance 350mm 31.5KA 1250A operatg.mechan. EK secondary equipment: operating cycle counter breaker tripping signal 2 position switches for signal: "closing spring charged" closing solenoid with varistor circuitry in the secundary circuit 1 shunt release voltage of closing solenoid DC 110V voltage of 1st shunt release DC 110V without 2nd release without 3rd release voltage of operating mechanism DC 110V auxiliary switch 12NO+12NC secondary connection 64-pole plug connector mechanical interlocking rating plate and instructions in english, frequency of secondary voltage 50Hz | |||||||||||||||||||||||||||||||||
| Product family | Not available | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Price Group | 15U | |||||||||||||||||||||||||||||||||
| List Price | Show prices | |||||||||||||||||||||||||||||||||
| Customer Price | Show prices | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | L-S----- | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : N / AL : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 40 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 170,000 Kg | |||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||||||||||||||
| Packaging Dimension | Not available | |||||||||||||||||||||||||||||||||
| Package size unit of measure | Not available | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | Not available | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85352100 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | HG11.03 | |||||||||||||||||||||||||||||||||
| Product Group | 3160 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Given | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
|||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
