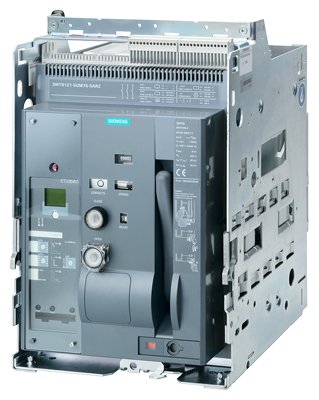

3WT8120-5UA74-5AB2 /3WT SERISI AÇIK TİP GÜÇ ŞALTERLERİ ÇEKMECELİ TİP, 1250A , 55KA , LSI KORUMALI LCD EKRANLI MOTOR , AÇTIRMA , KAPAMA BOBİNLİ, TRİP İHBAR VE KAPAMAYA HAZIR KONTAK VE SHUTTER DAHİL DAHİL, 2NO +2NC + 2ENV KONTAKLI
Kategori
Stok Kodu
3WT8120-5UA74-5AB2
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3WT8120-5UA74-5AB2 | |||||||||||||||||||||||||||||||||
| Product Description | withdrawable circuit breaker 3-pole, size 1 In=1250A to 500V, 50/60Hz AC Icu=55kA at 500V with mechanical lockout device with tripped signaling switch with tripped indicators with guide frame Overcurrent release ETU35WT LSI Setting range according to FS with display Motorized/manual operating mechanism with memory with electrical and mechanical activation Motor and electr. calling for 220...240 V AC, 220...250 V DC Activation solenoid 220...250 V DC without 1st auxiliary release With 2nd auxiliary release Shunt release "F", F2 220...240 V AC, 220...250 V DC switch position-depending 1st + 2nd auxiliary current switch block 2 NO + 2 NC - 2 CO 2-piece shutter with sealing cap against unauthorized switching off with door sealing frame | |||||||||||||||||||||||||||||||||
| Product family | Not available | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Notes |
This product cannot be ordered currently. If you need support please contact your Siemens partner |
|||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Headquarter Price Group | 1CA | |||||||||||||||||||||||||||||||||
| List Price | Price On Request | |||||||||||||||||||||||||||||||||
| Unit Customer Price | Show prices | |||||||||||||||||||||||||||||||||
| Metal Factor | LBP----- | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : N / AL : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 10 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 58,440 Kg | |||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||||||||||||||
| Packaging Dimension | Not available | |||||||||||||||||||||||||||||||||
| Package size unit of measure | Not available | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | Not available | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85362000 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||
| Product Group | 3744 | |||||||||||||||||||||||||||||||||
| Country of origin | China | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Given | |||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
|||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
