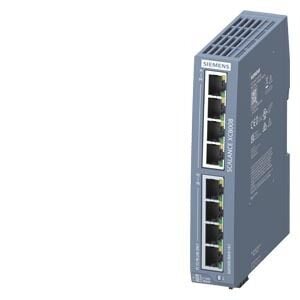

6GK5008-0BA00-1AL1 SCALANCE XCB008
Stok Kodu
6GK5008-0BA00-1AL1
Product
| Article Number | 6GK5008-0BA00-1AL1 |
| Product Brand Name | SCALANCE |
| Product Type Designation | XCB008 |
| Technical Product Detail Page | Siemens Product Page |
Transfer Rate
| Transfer Rate | 10, 100 Mbit/s |
Interfaces / For Communication / Integrated
| Number of Electrical Connections for Network Components or Terminal Equipment | 8; RJ45 |
Interfaces / Other
| Number of Electrical Connections for Power Supply | 1 |
| Type of Electrical Connection for Power Supply | 3-pole terminal block |
Supply Voltage, Current Consumption, Power Loss
| Type of Voltage / Supply Voltage | DC |
| Supply Voltage / Rated Value | 24 V |
| Power Loss / Rated Value | 1.43 W |
| Supply Voltage / Voltage Range | 19.2 ... 28.8 V |
| Consumed Current / Maximum | 0.07 A |
| Type of Electrical Connection for Power Supply | 3-pole terminal block |
| Product Component / Fusing at Power Supply Input | Yes |
| Fuse Protection Type / At Input for Supply Voltage | 0.5 A / 60 V |
Ambient Conditions
| Ambient Temperature / During Operation | -10 ... +60 °C |
| Ambient Temperature / During Storage | -40 ... +85 °C |
| Ambient Temperature / During Transport | -40 ... +85 °C |
| Installation Altitude / Height Above Sea Level / Maximum | 4000 m |
| Relative Humidity / At 25 °C / Without Condensation / During Operation / Maximum | 95 % |
| Protection Class IP | IP30 |
Design, Dimensions and Weights
| Design | Compact |
| Width | 27.8 mm |
| Height | 140 mm |
| Depth | 97.5 mm |
| Net Weight | 0.184 kg |
Fastening Method
| 35 mm DIN-Rail Mounting | Yes |
| Wall Mounting | Yes |
| S7-300 Rail Mounting | No |
| S7-1500 Rail Mounting | No |
