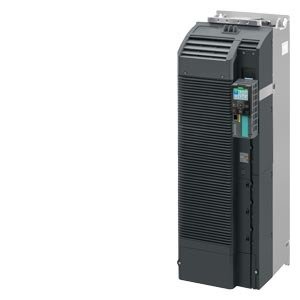

6SL3210-1PE33-7CL0/SINAMICS G120 PM240-2 160KW CT / 200KW
Kategori
Stok Kodu
6SL3210-1PE33-7CL0
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 6SL3210-1PE33-7CL0 | |||||||||||||||||||||||||||||||||
| Product Description | SINAMICS G120/S120 POWER MODULE PM240-2 FSG C3 WITH BUILT IN BRAKING CHOPPER 3AC380-480V+10/-10% 47-63Hz OUTPUT HIGH OVERLOAD: 160kW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 bis +50 DEG C (HO) OUTPUT LOW OVERLOAD: 200kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 bis +40 DEG C (LO) 1000x305x357 (HXWXD), FSG PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- Version V4.7 SP9 AND V5.1 | |||||||||||||||||||||||||||||||||
| Product family | Power Modules | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Price Group | 339 | |||||||||||||||||||||||||||||||||
| List Price | Show prices | |||||||||||||||||||||||||||||||||
| Customer Price | Show prices | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : 3A999A | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 15 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 113,000 Kg | |||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 1190,00 x 395,00 x 591,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4042948676813 | |||||||||||||||||||||||||||||||||
| UPC | 804766567759 | |||||||||||||||||||||||||||||||||
| Commodity Code | 85045000 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | D11.1SD | |||||||||||||||||||||||||||||||||
| Product Group | 2255 | |||||||||||||||||||||||||||||||||
| Group Code | R220 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2018 | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
|||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
