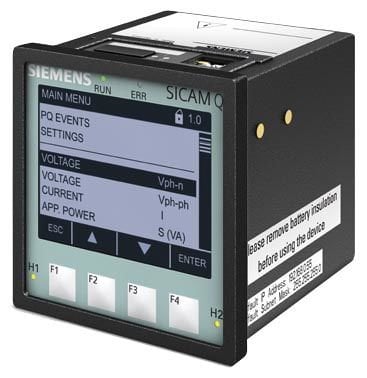

7KG9501-0AA31-2AA1 /Power Quality Instrument SICAM Q100
Stok Kodu
7KG9501-0AA31-2AA1
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7KG9501-0AA31-2AA1 | ||||||||||||||||||||||||||||||
| Product Description | Multifunctional Power Quality Instrument SICAM Q100, PQI-A, Dimensions 96mm x 96mm x 100mm, Panel flush-mounting device with LCD, power supply voltage: DC 24 – 230 V / AC 110 – 230 V, 4 inputs AC voltage measurement 4 inputs AC current measurement 2 binary in-, 2 binary outputs, Web server for parameterization and visualization, . NTP time synchronization, . CE and UL certification, . 2 GB memory, Ethernet switch, Ethernet interface, RJ45, and communication protocols SNMPv3, Modbus TCP and IEC 61850 server Serial interface, RS485, for Modbus RTU Gateway/Master | ||||||||||||||||||||||||||||||
| Product family | SICAM Q100 - Power Quality Recorder | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Notes |
This product cannot be ordered currently. If you need support please contact your Siemens partner |
||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Price Group / Headquarter Price Group | B23 | ||||||||||||||||||||||||||||||
| List Price | Show prices | ||||||||||||||||||||||||||||||
| Unit Customer Price | Show prices | ||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : EAR99 | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 10 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,778 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 0,01 x 0,01 x 0,01 | ||||||||||||||||||||||||||||||
| Package size unit of measure | CM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4025515640097 | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 90303200 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | PTD/EA | ||||||||||||||||||||||||||||||
| Product Group | 1350 | ||||||||||||||||||||||||||||||
| Group Code | U321 | ||||||||||||||||||||||||||||||
| Country of origin | India | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 20.05.2014 | ||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | - | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
