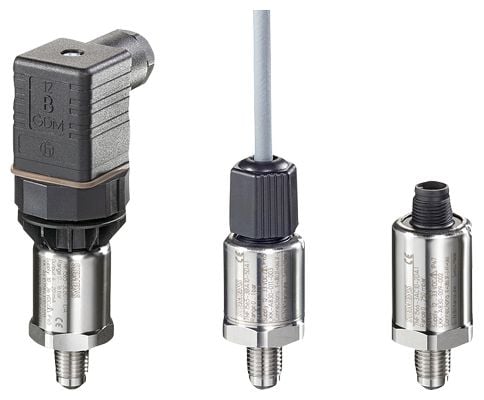

7MF1565-3BG00-1AA1 /SITRANS P200 0 ... 6 BAR
Kategori
Stok Kodu
7MF1565-3BG00-1AA1
| Product | |
| Article Number (Market Facing Number) | 7MF1565-3BG00-1AA1 |
| Product Description | SITRANS P200 TRANSMITTERS FOR PRESSURE AND ABSOLUTE PRESSURE FOR GENERAL APPLICATIONS NON-LINEARITY: 0,25 PERCENT (TYPICALLY) WETTED PARTS MATERIAL:CERAMICS, STAINLESS STEEL PLUS SEALING MATERIAL; NON-WETTED PARTS MATERIAL: STAINLESS STEEL MEASURING RANGE FOR GAUGE: 0 TO 6 BAR, OVERLOAD- PRESSURE 15 BAR OUTPUT SIGNAL: 4 TO 20 MA TWO-WIRE CONNECTION, POWER SUPPLY DC 7 TO 33 V WITHOUT EXPLOSION PROTECTION ELECTRICAL CONNECTION: PLUG TO DIN EN 175301-803-A, THREAT FOR PACKED GLAND M16 (WITH CONNECTOR) PROCESS CONNECTION: G1/2" MALE TO EN 837-1 (1/2" BSP MALE) (STANDARD FOR METRIC PRESSURE RANGES MBAR, BAR) SEALING MATERIAL BETWEEN SENSOR AND HOUSING: VITON (FPM, STANDARD) STANDARD VERSION |
| Product family | SITRANS P200 for gauge and absolute pressure |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Region Specific PriceGroup | 806 |
| List Price | 143,40 EUR |
| Customer Price | |
| Metal Factor | None |
| Delivery information | |
| Export Control Regulations | AL : N / ECCN : EAR99I |
| Delivery Time | 1 Day/Days |
| Net Weight (kg) | 0,200 Kg |
| Product Dimensions (W x L x H) | Not available |
| Packaging Dimension | Not available |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4019169848763 |
| UPC | Not available |
| Commodity Code | 90262020 |
| LKZ_FDB/ CatalogID | FI01-1 |
| Product Group | 4778 |
| Country of origin | Switzerland |
| Compliance with the substance restrictions according to RoHS directive | not available |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Obligation Category for taking back electrical and electronic equipment after use | No obligation to take back electrical and electronic equipment after use |
