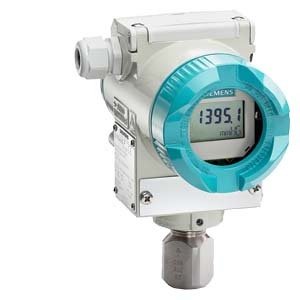

7MF4033-1EA10-1AA7-Z B11+Y21 /SITRANS P DSIII / P410 GAUGE PRESSURE
Kategori
Stok Kodu
7MF4033-1EA10-1AA7-Z B11+Y21
| Product | |
| Article Number (Market Facing Number) | 7MF4033-1EA10-1AA7-Z B11+Y21 |
| Product Description | SITRANS P DS III / P410, HART,4-20 mA transmitter for pressure Measuring cell filling silicone oil, normal cleaning Span: 0,63 ... 63 bar g (9.14 ... 914 psi g), overload limit 100 bar Diaphragm stainless steel, measuring cell stainless steel Female thread 1/2-14 NPT Die-cast aluminium housing Standard design None explosion protection Electric connection and cable inlet: screwed gland PG 13.5 Housing cover with window (digital indicator visible, customized adjustment supplement Y21 required) Plate inscription: english Adjustment digital indicator specify plain text Y21: mBar, bar, kpa, mpa,... |
| Product family | Not available |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Price Group | 8P1 |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | None |
| Delivery information | |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Standard lead time ex-works | 15 Day/Days |
| Net Weight (kg) | 2 Kg |
| Product Dimensions (W x L x H) | Not available |
| Packaging Dimension | Not available |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 90262020 |
| LKZ_FDB/ CatalogID | FI01-1 |
| Product Group | 4770 |
| Country of origin | France |
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Classifications | |
| Not available | |
