7ML5650-1DB00-0JB0 /CLS300,STANDARD,ROD VERSN,THREAD/FLANGE
Kategori
Stok Kodu
7ML5650-1DB00-0JB0
| Product | |
| Article Number (Market Facing Number) | 7ML5650-1DB00-0JB0 |

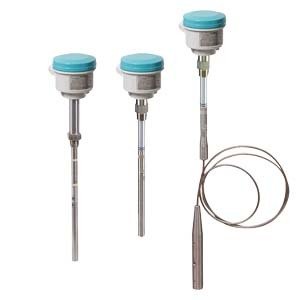

| Product Description | Pointek CLS300 - Standard - Rod Version with Threaded or Flanged process connection: Inverse frequency shift capacitance level switch with optional rod/cable choices and configurable output. It is ideal for detecting liquids, solids, slurries, foam and interfaces in demanding conditions where high pressure and temperatures are present. Process Connection: Threaded, 316L (1.4404) stainless steel R 1 1/2" (BSPT), EN 10226/PT (JIS-T), JIS B 0203 Probe length: (length from flange face) (threaded lengths include process thread) Extended rod, length 500 mm (19.69") Thermal Isolator: Without thermal isolator Wetted Seals: FKM Probe Material: 316L Stainless Steel with PFA lining and PEEK Isolators Approvals: General Purpose (CE, C-TICK) Enclosure and Lid: Aluminum epoxy coated 2 x M20 x 1.5 cable inlet, IP65 Active Shield Length: Standard length - (125 mm threaded, 105 mm flanged) |
| Product family | Not available |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Price Group | 8L3 |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | None |
| Delivery information | |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Standard lead time ex-works | 8 Day/Days |
| Net Weight (kg) | 2 Kg |
| Product Dimensions (W x L x H) | Not available |
| Packaging Dimension | Not available |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 90261029 |
| LKZ_FDB/ CatalogID | FI01-4 |
| Product Group | 4717 |
| Country of origin | Germany |
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Classifications | |
| Not available | |
