Product | ||
Article Number (Market Facing Number) | 7SD8061-1EB90-1FB1 L0S | |

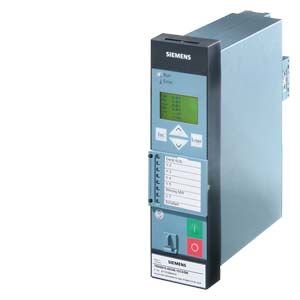

Product Description | Line differential protection Enclosure 1/6 19", 4 x I, 3 x U 7 BI, 8 BQ (2 changeover contacts) 1 live contact Interface FOC for mono (24 km)/multimode fiber (4 km), LC duplex plug Measuring inputs: Iph = 1 A / 5 A, Ie = 1 A / 5 A Rated auxiliary power: DC 24, 48 V Installation enclosure, screw terminals Region world, IEC/ANSI English (language can be changed) Front membrane standard System interface port B (device underside, front) IEC 61850, 100 Mbit Ethernet, with integrated switch optical, double, LC duplex plug without further communication interface for Port A Measurement: fault recording Functionality Basic version + ??? time-overcurrent prot. Phase (I>, I>>,Ip>) and ??? ground short-circuit prot. (In>, In>>,Inp>) Additional function: Transmission of 16 binary signals (via interface) | |
Product family | Not available | |
Product Lifecycle (PLM) | PM300:Active Product | |
Price data | ||
Price Group | 184 | |
List Price | Show prices | |
Customer Price | Show prices | |
Surcharge for Raw Materials | None | |
Metal Factor | None | |
Delivery information | ||
Export Control Regulations | ECCN : N / AL : N | |
Standard lead time ex-works | 15 Day/Days | |
Net Weight (kg) | 4,000 Kg | |
Product Dimensions (W x L x H) | Not available | |
Packaging Dimension | Not available | |
Package size unit of measure | Not available | |
Quantity Unit | 1 Piece | |
Packaging Quantity | 1 | |
Additional Product Information | ||
EAN | Not available | |
UPC | Not available | |
Commodity Code | 85363010 | |
LKZ_FDB/ CatalogID | SIPROTEC | |
Product Group | 3200 | |
Country of origin | Germany | |
Compliance with the substance restrictions according to RoHS directive | Since: 30.08.2010 | |
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |
WEEE (2012/19/EU) Take-Back Obligation | Yes | |
REACH Art. 33 Duty to inform according to the current list of candidates |
|
|
Classifications |
