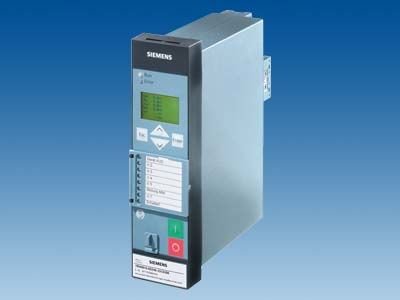

7SK8062-5EB90-1HE0 L0R /Motor protection relay 7SK80
Kategori
Stok Kodu
7SK8062-5EB90-1HE0 L0R
| Product | |||||||
| Article Number (Market Facing Number) | 7SK8062-5EB90-1HE0 L0R | ||||||
| Product Description | Motor protection Enclosure 1/6 19", 4 x I, 3 x U, 3 BI, 5 BO (2 changeover contacts) 5 temperature sensors 1 live contact measuring inputs: Iph = 1 A / 5 A, Iee (sensitive) = 0.001 to 1.6 A/0.005 to 8 A rated auxiliary power: 60 V/ 110 V / 125 V/ 220 V DC, 115 V / 230 V AC installation enclosure, screw terminals region world, IEC/ANSI language English (language can be changed) front membrane standard system interface port B (device bottom side, rear) IEC 61850, 100 Mbit Ethernet, electr., double, RJ45 plug without system interf., port A measurement: fault recording functionality: overcurrent protection overcurrent protection PH(50/51) I>, I>>, I>>>, Ip ground-fault protection overcurrent protection ground (50N/51N) Ie>, Ie>>, Ie>>>,Iep ground fault/ground fault prot. Iee>, Iee>>, Ieep overload protection (49) trip-circuit supervision (74TC) circuit-breaker failure protection (50BF), unbalanced-load protection (46) lock out (86) start-up time monitoring (48) undercurrent monitoring (37) restart inhibit (66/86) rotor blocking protection (14) load-jam protection (51M) supplementary function: determination of(*) | ||||||
| Product family | Ordering Data Overview | ||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||
| Notes |
This product cannot be ordered currently. If you need support please contact your Siemens partner |
||||||
| Price data | |||||||
| Price Group / Headquarter Price Group | B18 | ||||||
| List Price | Show prices | ||||||
| Unit Customer Price | Show prices | ||||||
| Metal Factor | None | ||||||
| Delivery information | |||||||
| Export Control Regulations | ECCN : N / AL : N | ||||||
| Standard lead time ex-works | 20 Day/Days | ||||||
| Net Weight (kg) | 4,000 Kg | ||||||
| Package size unit of measure | Not available | ||||||
| Quantity Unit | 1 Piece | ||||||
| Packaging Quantity | 1 | ||||||
| Additional Product Information | |||||||
| EAN | Not available | ||||||
| UPC | Not available | ||||||
| Commodity Code | 85363010 | ||||||
| LKZ_FDB/ CatalogID | SIP6.4 | ||||||
| Product Group | 1318 | ||||||
| Group Code | U321 | ||||||
| Country of origin | Germany | ||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 29.09.2008 | ||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
||||||
| Classifications | |||||||
|
|||||||
