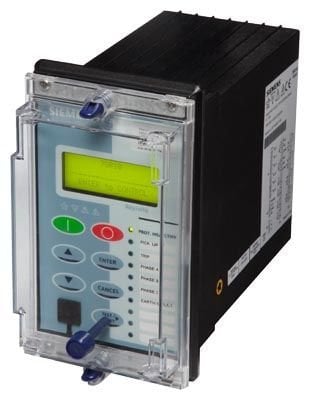

7SR1003-1MA20-2DA1-Z Y20 /Non direct. O/C relay (Argus)
Kategori
Stok Kodu
7SR1003-1MA20-2DA1-Z Y20
| Product | ||
| Article Number (Market Facing Number) | 7SR1003-1MA20-2DA1-Z Y20 | |
| Product Description | ARGUS overcurrent relay Non-directional, size 4 molded case, 4 CT, 10 LEDs, 9 binary inputs, 6 binary outputs, Measuring input: 1/5 A, 50/60 Hz, auxiliary voltage: DC 24 - 240 V, AC 48 - 240 V, binary input threshold 19 V DC, Standard version - no cover Communication: Front port: USB and rear: RS485 supporting IEC 60870-5-103 or Modbus RTU or DNP 3.0. . Front fascia: w. breaker control pushbuttons Protection function: Standard version plus autoreclose (79), 3 nos. additional BI special version for turkey | |
| Product family | Ordering Data Overview | |
| Product Lifecycle (PLM) | PM300:Active Product | |
| Notes |
Product Configuration is incorrect. Please check the configuration.
Please enter text for every Y option (using the Configurator).
This product cannot be ordered currently. If you need support please contact your Siemens partner |
|
| Price data | ||
| Price Group / Headquarter Price Group | B21 | |
| List Price | Show prices | |
| Unit Customer Price | Show prices | |
| Metal Factor | None | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | On request | |
| Net Weight (kg) | 1,600 Kg | |
| Package size unit of measure | Not available | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | Not available | |
| UPC | Not available | |
| Commodity Code | 85364900 | |
| LKZ_FDB/ CatalogID | PTD/EA | |
| Product Group | 1345 | |
| Group Code | U321 | |
| Country of origin | India | |
| Compliance with the substance restrictions according to RoHS directive | Since: 14.10.2014 | |
| Product class | B: return restricted, please contact your Siemens partner/contact | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
|
| Classifications | ||
| Not available | ||
